China made loader witn price small underground loader

China made loader witn price small underground loader

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-11-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  6100x1900x2960
  • Place of Origin:  Qingzhou
  • Brand Name:  SWGM/HERACLES
  • Model Number:  WZ22-16
  • Weight: 4500.000 kg

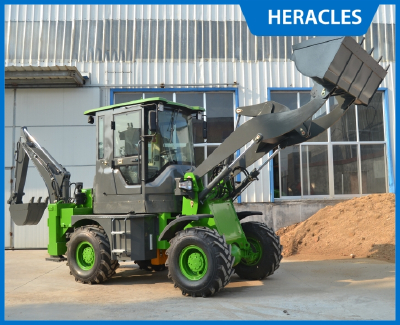

1.China Backhoe Loader Introduction:

Backhoe loader WZ22-16 is a new multi-fuction engineering machine which gathers the loaders and excavating in the integral machine.

It is a multi-use machine with exceptional performance,particularly applied for soil-stone,small or medium project.

2.China Backhoe Loader Advantage:

1)Advanced fashion front-end loading and back-end excavation structure,with reasonable and shape streamline design.

2)The driving cab designed is according with ergonmic and equipped with an air conditioner which keeps comfortable temperatures and wide vision,low noise and good ventilation,environment..

3)The acurated valve control take brake system with Hydraulically-actuated, wet disc brakes, which ensue the time braking so safter.

4)Advanced 3D graphics and ultrasonic testing of weld seam quality ensure the safet of driving and construction.




  • Size:  6100x1900x2960
  • Place of Origin:  Qingzhou
  • Brand Name:  SWGM/HERACLES
  • Model Number:  WZ22-16
  • Weight: 4500.000 kg

WZ22-16 Specification

WZ22-16

Overall Dimension:

6100x1900x2960mm


Rated load:

1600kgs


Operate weight:

4500kgs


Bucket width:

1900mm


Bucket capacity:

0.8m³


Dig bucket capacity

0.22


Max. dumping height

2700mm or customized


Max. digging depth

2500mm or customized


Dumping distance

1050mm

Engine

Model:

Yunnei engine

Optional:

Yanmar or Cummins

Rated power

42KW

Pattern:

In-line, water-cooling, 4 stroke, direct inject

Storage Battery

80 A free-maintenance

Transmission System

Gearbox model:

265 split type

Axle:

Hub reduction axle

Drive model:

Four wheel drive

Steering System

Steering angle

±35°

Min. Turning Radius:

4600mm

Pattern:

Articulated type full-hydraulic power steering

Service brake

Air over hydraulic, disc brake

Parking brake:

Hand operate

Tyre

Model:

23.5/70-16

Optional model

12-16.5 or 14-17.5 wider tire

MOQ

1 set


Package:

1set in 1x20'GP, 2 sets in 1x40'HQ
