- Size: 4860*1550*2570mm
- Place of Origin: Qingzhou
- Brand Name: SWGM/HERACLES
- Model Number: HR910F
- Weight: 3350.000 kg
1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2.Using special drive axle, with strong ability to overcome obstacle
3.Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, 6.brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
- Size: 4860*1550*2570mm
- Place of Origin: Qingzhou
- Brand Name: SWGM/HERACLES
- Model Number: HR910F
- Weight: 3350.000 kg

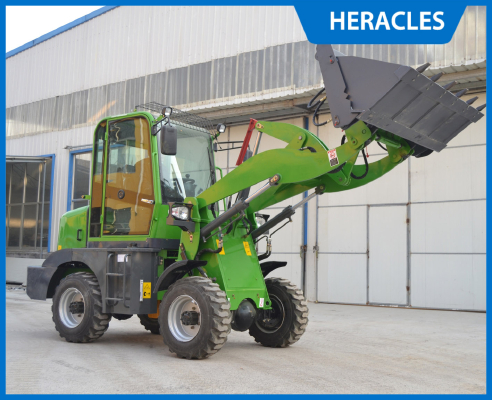

Specifications Of HERACLES wheel loader | ||
Model | HR910F | |
Performance | Rated load | 1000kg |
Overall weight | 3350kg | |
Bucket capacity | 0.5m³ | |
Maximum breakout force | 31kN | |
Maximum grade ability | 20° | |
Maximum dump height | 2622mm | |
Maximum dump reach | 900mm | |
Overall dimention(L× W ×H) | 4860× 1550 × 2570 | |
Transmission system | Transmission | Hydraulic torque converter |
Speed type | Variable speed control, two speeds | |
Inching | Nope | |
Drive axles | Wheel base | 2150mm |
Wheel tread | 1330mm | |
Minimum ground clearance | 330mm | |
Engine | Model | Changchai490 |
Type | Vertical, In-line, Water Cooled, 4-Stroke Diesel Engine | |
No. of cylinder-bore/stroke | 4-90/95 | |
Rated power | 38kW | |
Rated speed | 2400r/min | |
Hydraulic system | System working pressure | 16.5MPa |
Boom lifting time | 5.7s(Full Loaded) | |
Total time | 10.2s(Full Loaded) | |
Control valve | 3-spoon type,mechanical | |
Fuel tank capacity | 80L | |
Brake system | Service brake | Vacuum boost drum brakes on 4 wheels |
Parking brake | Manual parking brake | |
Tyre | Type specification | 12.00-16 |
STANDARD | ||
Parking brake | Tipping cabin/ventilator | Deluxe adjustable seat (with armrest backrest) |
Disc brakes | Backward image | 3-spool valve for bucket and attachment |
Bucket | Adjustable console | 220V engine preheater / cold start |
Heater/Fan | E4/E-mark Work Lamp | Fire Extinguisher/Hammer broken windows |
Quick hitch | Mechanical joystick | 2 pcs Batteries/80Ah x 12 V |
OPTIONAL | ||
E-mark seat | Electric joystick | Varta Battery/LED lamp |
Float function | Air conditioning | Boom damping system |
