- Size: 4480*1400*2400mm
- Place of Origin: Qingzhou
- Brand Name: SWGM/HERACLES
- Model Number: HR908M
- Weight: 2000.000 kg
1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2.Using special drive axle, with strong ability to overcome obstacle
3.Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, 6.brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
- Size: 4480*1400*2400mm
- Place of Origin: Qingzhou
- Brand Name: SWGM/HERACLES
- Model Number: HR908M
- Weight: 2000.000 kg

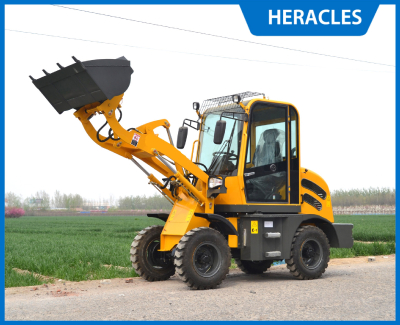

Technical Specifications of Model HR908M Wheel Loaders
1.0 Engine Details
(1) Engine type: In-line arrangement, water cooled, one-cycle diesel Engine
(2) Rated Power : 22HP
Optional Power 24HP or 28HP
(3) Rated Speed : 2400 r/min(rpm)
2.0 Steering System
(1) Cycloid full hydraulic steering system : BZZ-80
(2) System Pressure : 16Mpa
3.0 BUCKET
(1) Bucket Capacity : 0.4 m³
(2) Bucket width : 1400mm
(3) Bucket type : Heavy duty bolt on teeth
(4) Max. Breakout Force : 21KN
(5) Rated Load : 800kg
(6) Operating Weight : 2000kg
(7) Unloading height 2300mm
4.0 OVERALL DIMENSION
(1) Overall Length ( Bucket on ground position ) : 4480mm
(2) Overall Height
(a) Ground to Cab Top : 2400mm
(b) Ground to exhaust pipe : It is below from the top of cabin
(3) Overall Width : 1400mm
5.0 OPERATING SPECIFICATIONS
(1) Drive Means : Four-wheel drive
(2) Min Turning Radius : 3000mm
(3) Driving System : mechanical
(4) Dumping Reach at max height : 900mm
(5) Min the ground distance : 240mm
(6) Time of raise : 4.5sec.
(7) Hydraulic cycle time : 9sec.
6.0 Brake System
(1) Service Brake : Mechanical brake
(2) Parking Brake : Hand operated
7.0 Wheelbase : 1620mm
8.0 Track : 1160mm
9.0 Machine speed
(1)Low speed (km/h) 4 (2) High speed (km/h) 25
