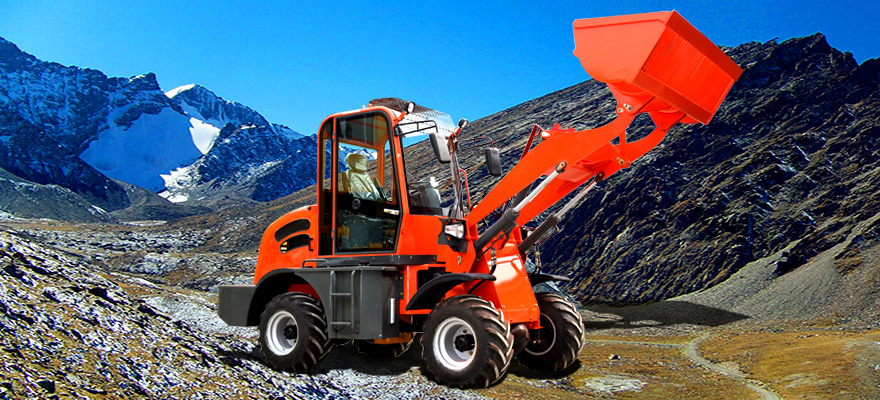

HERACLES HR912F Compact small 1.2 ton mini wheel loader

HERACLES HR912F Compact small 1.2 ton mini wheel loader

  • Min.Order Quantity: 1 Set
  • Supply Ability: 500 Sets per Month
  • Port: Qingdao port
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-11-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  5250x1750x2750mm
  • Place of Origin:  Qingzhou
  • Brand Name:  SWGM/HERACLES
  • Model Number:  HR912F
  • Weight: 3400.000 kg

Product Description



HERACLES HR912F Multifunctional Farm Garden used mini wheel loader

Articulated Rated Load 1.2T Mini Wheel Loader

Operating Weight 3400KG Small Wheel Loader

  heel Loader

Standard Equipments:

    Standard Bucket, Luxury Cabin,  Luxury seat (with backrest and armrests) , Xi chai 4 DW91 Engine(with CE) , Tipping Cabin, E4 Lamp, Quick Hitch ,   Adjustable Steering Wheel,130W Heater, 220 V Engine Heater, Lock for Lifting and Steering Cylinder, Backward Imagine, Mechanical Joystick, Disc-Brake, Blinking Lamp without Key, and Easy-damaged Spare Parts.

Optional Equipments:

    Hydraulic Joystick, Electric Joystick, Xinchai C490BPG Engine(Euroiii and EPA Certificate) , E-Mark Seat,Floating Function,  Extra Hydraulic Line, LED Light, Varta Anti-free Battery,  12-16.5 Tyre, 14-17.5 Tyre, 31.5×15-15 Tyre, Tyre Chain



Specifications of HR912F Small Wheel Loader:



THE TECHNICAL PARAMETERS OF HR912 CE CERTIFICATE MINI WHEEL LOADER

Bucket Capacity(m³)

0.6

Operating Weight(kg)

3400

Bucket Width(mm)

1650

Rated Load(kg)

1200

Brake Mode

Four-wheel hydraulic spead-shoed brake

Driving Mode

Four-wheel drive

Overall Dimensions (mm)(L*W*H)

5250x1750x2750

Max. Breakout Force(KN)

32

Forward Speed 1st(km/h)

0-12

Forward Speed 2nd(km/h)

0-25

Reverse Speed (km/h)

0-25

Max. Dumping Height(mm)

2650/2900

Max. Dumping Reach (mm)

850

Min. Turning Radius(mm)

3890

Full Bucket Lifting Time (s)

4.5

Total Hydraulic Cycle Time (s)

9

Tread Width (mm)

220

Wheel Base (mm)

1580

Min. Clearance Over Ground (mm)

230

MAX. Tilt Angel(°)

30

Diesel Engine

Brand

Changchai or Yunnei Engine

Optional brand

Euro3 and EPA Xinchai Engine

Imported Yanmar/Perkins/Kubota/Cummins Engine

Type

In-line arrangement,Four-stroke,Water cooled,

4-cylinder diesel engine

Rated Output(KW)

38/39

Rated Speed (rpm)

2400

Engine starting mode

Electric

Transmission

Type

Hydraulic converter

Drive axle

Type

Isuzu drive axle

Rear Axle Oscillation

Center oscillation

Oscillating Angle Of Rear Axle

13°

Tire

Model

14/90-16

Optional model

12-16.5 or 14-17.5 Wider Tyre

31*15.5-15 Agriculture Tyre

Steering System

Working Pressure (MPa)

10

Steering System

Articulated Frame with hydraulic power steering

Max. Steering Angle (°)

35

Working Hydraulic System

Pressure Of Tire (MPa)

2.5-3.5

Working Pump Type

Gear pump

Working Pressure (MPa)

16

Brake System

Service Brake

Four Wheel Hydraulic spread-shoed brake

Parking Brake

Hand operated

Package

1 unit in 20GP,3 units in 40HQ.

Delivery time

15 days after 30% down payment.

Warranty

15 months after delivery.




LCL Container:

for sample machine,it will be much better to be delivery by LCL container.

the small loader and loader attachment will be packed by steel frame and covered by ply-wood



FCL container:

for quantity order, better to be deliver by 20' container or 40' container

None packing. the mini loader will be fastened into the container directly
