- Size: 5300*1900*2830mm
- Place of Origin: Qingzhou
- Brand Name: SWGM/HERACLES
- Model Number: HR918F
- Weight: 4100.000 kg
Product Description

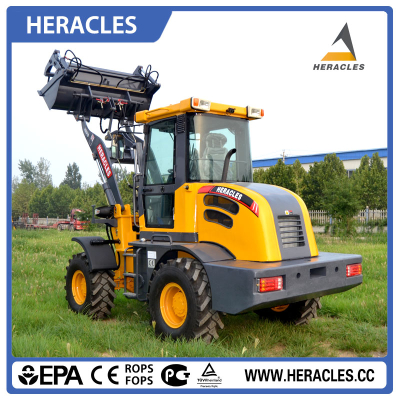

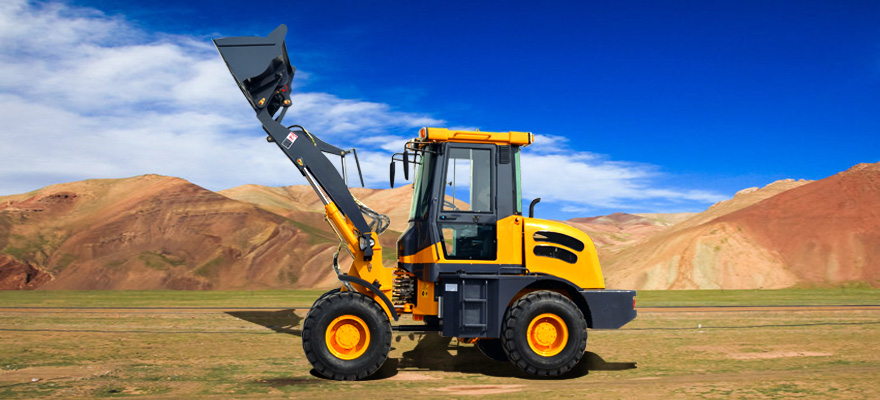

HR918F loader is a high-end product mainly for loading and unloading loose materials. The entire machine is compact, flexible in operation, of high working efficiency, more suitable for operation in narrow and small field and is widely used in places such as farms, timber yard and municipal construction.
1. It is equipped with the engine meeting the requirements of China II emission standard, with strong power, low noise and reliable performance.
2. Single-stage three-element hydraulic torque converter and axis-fixed transmission case are used, with high reliability and are convenient for maintenance; SWGM reinforced drive axle is configured, with large bearing capacity, long service life and high reliability.
3. Load-sensing full hydraulic steering system is used, with light and quick steering and reliable energy saving properties; Pilot-control working device hydraulic system is used, with high operating efficiency and is light and easy to operate.
4. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability.
5. New steel structure cab is adopted, which ensures wide vision, a larger operation space,good sealing performance; the air conditioner can be installed optionally, which ensures good comfort.
6. Electrical system adopts high-end and mature electrical apparatus element, which makes it stable and reliable.
7. Engine hood is designed with large door, which makes it more convenient for repair and maintenance.
8. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient of fullness and high reliability.
THE TECHNICAL PARAMETERS OF HR918F CE CERTIFICATE MINI WHEEL LOADER | ||
Bucket Capacity(m³) | 0.9 | |
Operating Weight(kg) | 4100 | |
Bucket Width(mm) | 1900 | |
Rated Load(kg) | 1800 | |
Brake Mode | Four-wheel hydraulic spead-shoed brake | |
Driving Mode | Four-wheel drive | |
Overall Dimensions (mm)(L*W*H) | 5300x1900x2830 | |
Max. Breakout Force(KN) | 32 | |
Forward Speed 1st(km/h) | 0-12 | |
Forward Speed 2nd(km/h) | 0-25 | |
Reverse Speed (km/h) | 0-25 | |
Max. Dumping Height(mm) | 2650/2900/3100 | |
Max. Dumping Reach (mm) | 850 | |
Min. Turning Radius(mm) | 3890 | |
Full Bucket Lifting Time (s) | 4.5 | |
Total Hydraulic Cycle Time (s) | 9 | |
Tread Width (mm) | 220 | |
Wheel Base (mm) | 1580 | |
Min. Clearance Over Ground (mm) | 230 | |
MAX. Tilt Angel(°) | 30 | |
Diesel Engine | Brand | Yunnei turbocharged Engine |
Optional brand | Imported Yanmar/Perkins/Kubota/Cummins Engine | |
Type | In-line arrangement,Four-stroke,Water cooled, 4-cylinder diesel engine | |
Rated Output(KW) | 55 | |
Rated Speed (rpm) | 2400 | |
Engine starting mode | Electric | |
Transmission | Type | Fixed-spindle power shift with converter |
Drive axle | Type | Wheel reduction drive axle |
Rear Axle Oscillation | Single stage planetary reduction | |
Oscillating Angle Of Rear Axle | 13° | |
Tire | Model | 23.5/70-16 Agricultural Tyre |
Optional model | 14-17.5 Wider Tyre 295/80R22.5 or 315/80R22.5 Truck Tyre | |
Steering System | Working Pressure (MPa) | 10 |
Max. Steering Angle (°) | 35 | |
Working Hydraulic System | Pressure Of Tire (MPa) | 2.5-3.5 |
Working Pump Type | Gear pump | |
Working Pressure (MPa) | 16 | |
Brake System | Service Brake | Vacuum boost disc brakes on 4 wheels |
Parking Brake | Hand operated disc brake | |
Package | 1 unit in 20GP,3 units in 40HQ. | |
Delivery time | 15 days after 30% down payment. | |
Warranty | 15 months after delivery. | |
