- Size: 5630x2200x2710mm
- Place of Origin: Qingzhou
- Brand Name: SWGM/HERACLES
- Model Number: HR915F
- Weight: 4800.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :

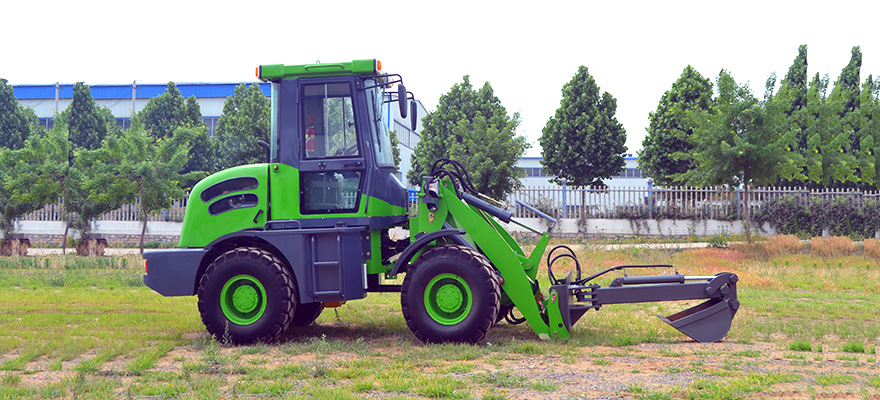

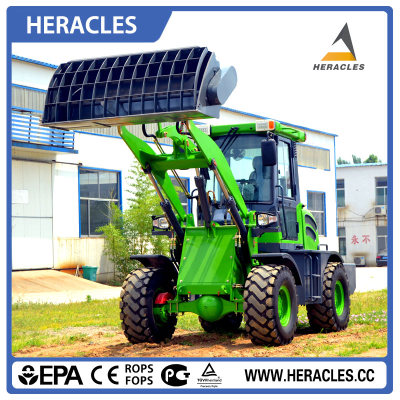

Hot Sale HERACLES HR920F Multifunctional small wheel loader for sale,small loader,loader
1.Highlights of HR920F wheel loader
1) . Fully Hydraulic Driving ;
2) . CE, ROPS,FOPS Certificate ;
3) . Euro III / EPA Engine ;
4) . Chinese factory ;
5) . All loaders are designed under European customers' suggestion as market need ;
6) . we have spare parts warehouse in Europe .
2.Specifications of HERACLES HR920F Small Wheel Loader:
Standard Equipments:
Standard Bucket, Luxury Cabin , Euroiii Engine , E-Mark Seat ,Adjustable Steering Wheel,
130W Heater,220 V Engine Heater,Lock for Lifting and Steering Cylinder,Backward Imagine, Tipping Cabin,Hydraulic Joystick ,Disc-Brake, Quick Hitch, 16/70-20 Wide Tire , E4 Lamp,
Blinking Lamp without Key, LED Light and Easy-damaged Spare Parts.
Optional Equipments:
Electric Joystick, Hydraulic-pressure Check System , Floating Function ,
Extra Hydraulic Line, Varta Anti-free Battery,14-17.5 T i re,31.5×15-15 T i re, 20.5/70-16 Tire, T i re Chain.
3.Specifications of HERACLES HR920F mini wheel loader:
Performance | 1 | rated loading | 2000kg |
2 | overall weight | 4800kg | |
3 | rated bucket capacity | 1m3 | |
4 | maximum tractive force | ≥54KN | |
5 | maximum breakout force | ≥45.4KN | |
6 | maximum grade ability | 30° | |
7 | maximum dump height | 2900/3100mm | |
8 | maximum dump reach | 752mm | |
9 | overall dimension (L×W×H) | 5633×2000×2712mm | |
10 | minimum turning radius | 5251mm | |
Engine | 11 | model | Yunnei turbocharged engine |
12 | type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
13 | weight | 320kg | |
14 | rated power | 60kw-2400r/min | |
15 | maximum torque | 270N.m | |
Transmission system | 16 | gearbox mode | Countershaft power-shift |
17 | gear shift | 2 forward shift 2 reverse shift | |
18 | maximum speed | 24km/h | |
Drive axles | 19 | main reducing mode
| Circular Arc Bevel gear, single stage |
20 | decelerating mode | Single stage planetary type | |
21 | wheel base (mm) | 2400mm | |
22 | wheel tread | 1640mm | |
23 | ground clearance | 310mm | |
Hydraulic system | 24 | system working pressure | 16MPa |
25 | boom lifting time | 4.8s±0.2s | |
26 | total time | 9.2s±0.5s | |
27 | fuel tank capacity | 80L | |
28 | function of leveling automatically | yes | |
Brake system | 29 | service brake | air assist disc brake on 4 wheels |
30 | parking brake | Disc brake | |
Tyre | 31 | type specification | 16/70—20 |
32 | front tyre pressure | 0.22Mpa | |
33 | rear tyre pressure | 0.18Mpa |
