- Size: 45
- Place of Origin: Weifang, Shandong, China
- Brand Name: SWGM/HERACLES
- Model Number: HR4200
- Weight: 5500.000 kg
- :
- :
- :
- :
- :
- :

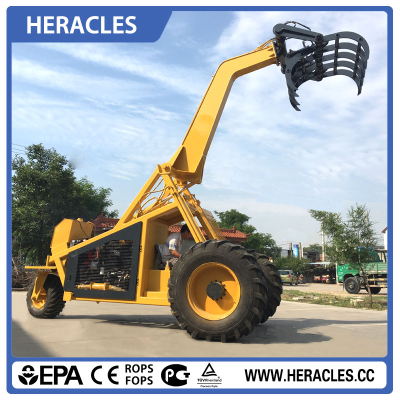

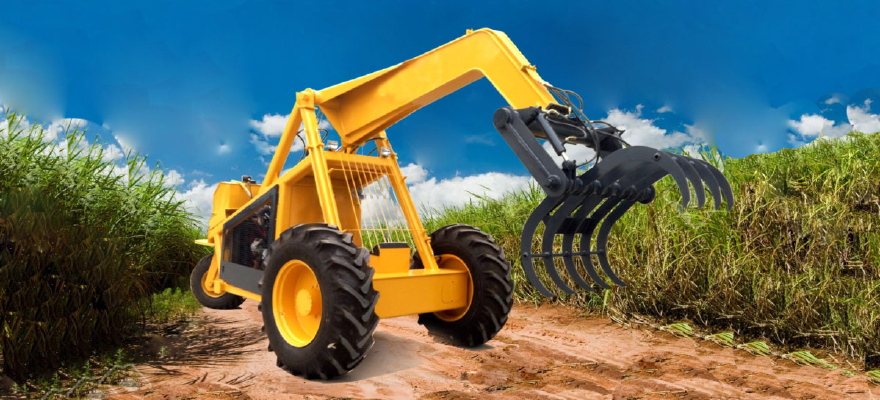

The Specification of HR4200 Sugarcane Loader n Engine: Optional Cummins diesel engine, excellent performance, low fuel consumption, low noise, large power reserves, long stroke. n Oil tube: Choose high-pressure rubber pipe, which suits all the bad working environment, antiquake, anti-loose, stand fire. n Hydraulic working system: taking advanced of foreign advanced technology, it can reduce wobble with buffer function, and the machine service life can be extend. n Traveling system: transmission giving infinitely variable speed in all of ranges, hydraulic braking, working and walking. n Structure: Choose the domestic manganese steel with excellent quality, improving the strength of structure in a high level, which guarantee the safety of traveling and construction. n Surface treatment: derusting with large size shot blast machine, to change welding stress. n Surface spray coating: ant rusting paint, finishing paint. n The process of welding: carbon dioxide MIG welding. n Working table controlled by microcomputer, water temperature, oil temperature, current, work timing are all insight. n Famous brand hydraulic components are adopted, of which the operating life is long, the power is driving and the operating speed is fast. n Oil return filter is set in oil return pipeline to guarantee the cleanness of hydraulic oil. n Ascendant performance of complete appliance, with extraordinary operation efficiency. |
The Technical Parameters of HR4200 Sugarcane Loader
Max. Snatch height ………………………………………………………………………………......…………………..............…5000mm
Min. Rotary Radius...............................................................................3600mm
Operation width of grapple.............................................................................1200mm
Standard Engine Brand/Model/Rate Power................................YUCHAI/4102 Turbocharged/78KW((106HP)
Optional Engine Brand/Model/Rate Power ………………………………CUMMINS/4BT3.9-C100/74KW(100HP)
Total Machine Weight……………………………….……………………………………………………………...…………………5500KG
Max, Grab Capacity……………………………….………….…………….……………………………….………...…..…..…Max. 700KG
Working Efficiency …………………………………………………………………………………………………..…..………1000kg/min
Working Times ………………………………………………………………………………………………...….……..……….…………3/min
Hydraulic System Working Pressure……………………….…………………………………………….………………………20Mpa
Maximum Flux……………………………………………………………………………………………………….…………63ml/r/63 ml/r
Slope ……………………………………………………….…………………………………………….......………..………………………..…25%
Maximum Hauling Force…………………………………………………………………………………………………………………29KN
Walking Speed ………………………………………………………………………………………………..........………..………≤25KM/H
Overall dimension(L×W×H) …………………………….………………………………………................7250*2150*2780mm
Min. Ground Clearance…………………………………………………………………………………….…………………………400mm
Tread…………………………………………………………………………………………………………………...…………………….1790mm
Wheelbase…………………………………………………………………………………………………………………………………3062mm
Tyre……………………………………………………………………………………………………………………....……23.1-26(front dual)
……………………………………..................................................................….......…....……10-16.5(rear one)
Max. grab size..................................................................1200mm
Min. hold circle size.............................................................530mm
