- Size: 4700*1500*2500mm
- Place of Origin: Qingzhou
- Brand Name: SWGM/HERACLES
- Model Number: HR910M
- Weight: 2500.000 kg
- :
- :
- :
- :
- :
- :
- :

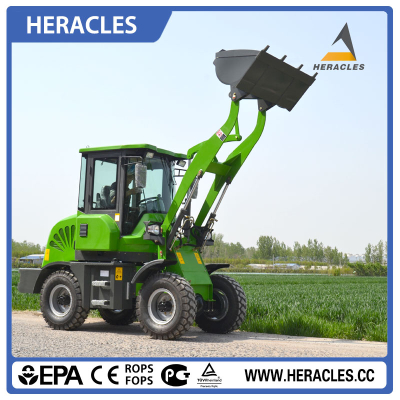

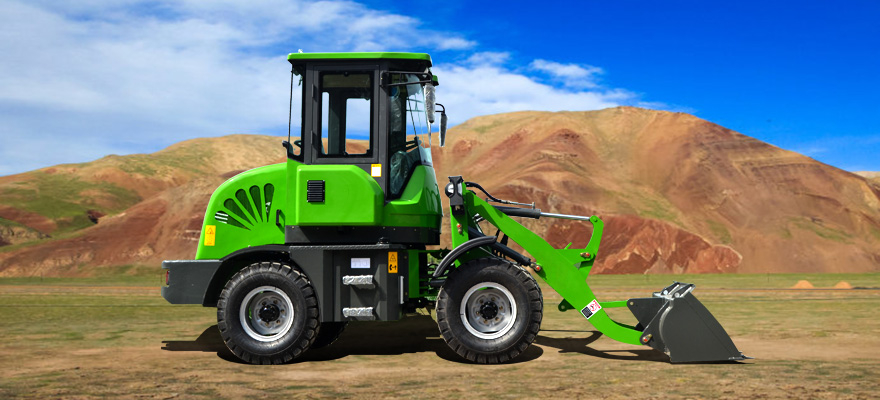

Specifications of HR910M compact wheel loader
Specification | Overall weight(kg) | 2500 |
L×W×H(mm) | 4700×1500×2500mm | |
Rated bucket Capacity(m3) | 0.5 | |
Rated load(kg) | 1000 | |
Dump height (mm) | 2350 | |
Dump distance | 700mm | |
Wheelbase | 2100mm | |
Thread | 1405mm | |
Total time | 11s | |
Engine | Model | 2105 |
Optional model | 390(25KW) | |
Type | direct injection, horizontal, water-cooled, four stroke, double cylinder | |
Rated power(KW) | 28 | |
Rated speed(r/min) | 2200 | |
Working system | Distribution of work valve | DF15.2C |
Working pump | CBF32 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 35°±1 | |
Min turning radius(mm) | 3400 | |
Tyres | Standard tyres | 9.00-16 |
