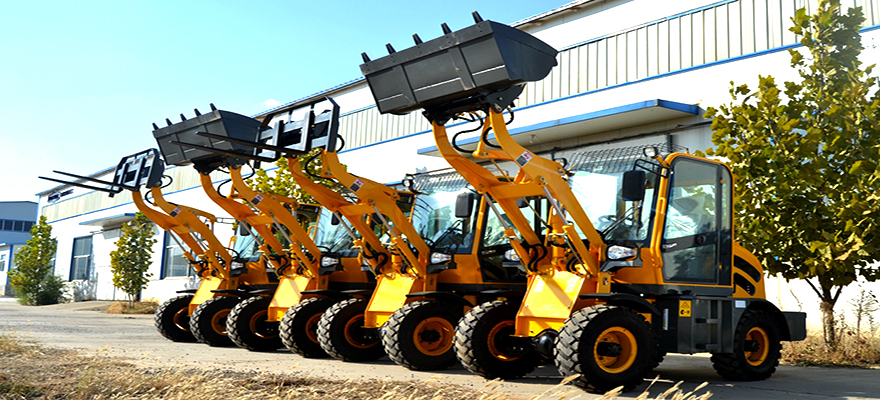

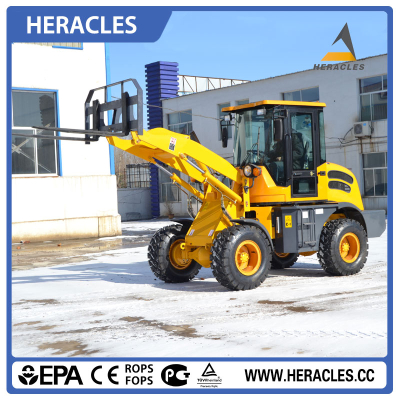

Technical Specification of Model HR915M Wheel Loaders

1.Dimensions:

4750 x 1750 x 2650

Wheel base: 2050 mm

Ground clearance: 230 mm

Max. speed: 25 km/h

2.Engine:

YN27 engine

Type: water cooled, 4-cylinder

Rated power: 42KW

2400 RPM

Diesel, direct injection

Extra heating of liquid refrigerant

3.Transmission system:

Mechanical, 4-wheel drive

4.Axles:

All-axle drive

Front axle fixed type, rear axle oscillating type with deflection angle 30°

5.Breaking system:

Basic brake acting on four wheels, hydraulic type

Parking brake

6.Working hydraulic system:

Main gear pump

Hydraulic steering

7.Tires:

20.5-16（Optional 12-16.5 wider tire）

8.Batteries:

2 x 12V

9.Working system:

Hydraulic steering system, articulated frame allows to operate machine smoothly

10.Bucket operations cycle:

Bucket lifting time: 4s

The whole cycle time: 9s

Load capacity: 1500 kg

Max. lifting height: ca. 3100mm

11.Cab:

Safe and silenced in accordance with EU standards

Heated

Warning lights

Radio set

Anti-vibration type seat

Readable dashboard

Seat belts

Fan with two speeds

Safety hammer

Fire extinguisher

12.Equipment:

Standard bucket with general-purpose teeth

Bucket capacity 0.7m³
