- Size: 5890*2000*2850mm
- Place of Origin: Shandong Qingzhou
- Brand Name: SWGM/HERACLES
- Model Number: HR926F
- Weight: 5500.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :

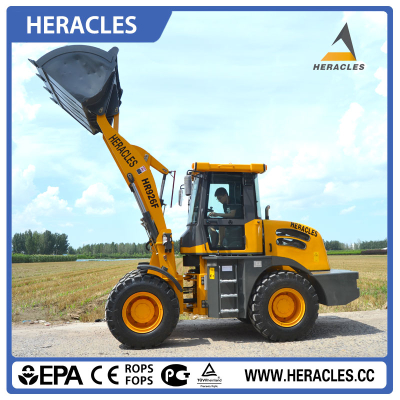

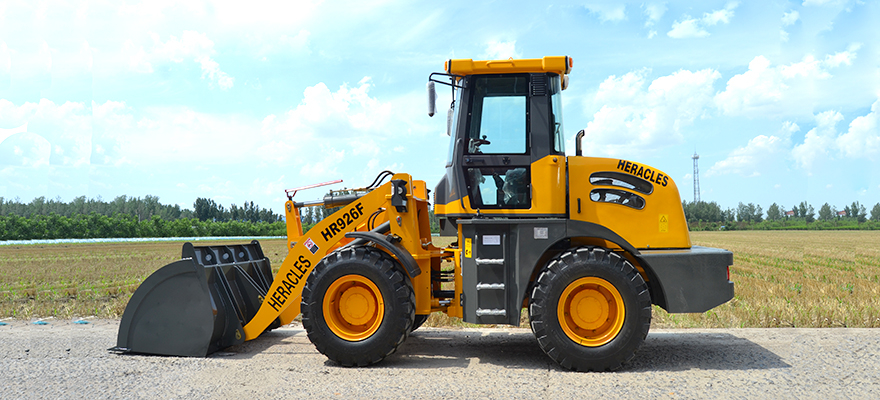

The technical parameters of HR926F series CE certificate wheel loader | |||
Performance | 1 | Rated loading | 2400kg |
2 | Overall weight | 5500kg | |
3 | Rated bucket capacity | 1.3m³ | |
4 | Maximum tractive force | ≥54KN | |
5 | Maximum breakout force | ≥45.4KN | |
6 | Maximum grade ability | 30° | |
7 | Maximum dump height | 3100 | |
8 | Maximum dump reach | 752mm | |
9 | Overall dimension (L×W×H) | 5890×2000×2850mm | |
10 | Minimum turning radius | 5330mm | |
Engine | 11 | Standard Engine Model | Yunnei turbocharged engine |
12 | Optional model | Weichai/Cummins engine | |
13 | Type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
14 | Rated power | 76KW | |
15 | Rated speed | 2200rpm-2400rpm | |
16 | Engine starting mode | Electric | |
Transmission system | 17 | Gearbox mode | Counter shaft power-shift |
18 | Gear shift | 2 forward shift 2 reverse shift | |
19 | Maximum speed | 25km/h | |
Drive axles | 20 | Main reducing spiral | Circular Arc Bevel gear, single stage |
21 | Decelerating mode | Single stage planetary type | |
22 | Wheel base (mm) | 2400mm | |
23 | Wheel tread | 1640mm | |
24 | Ground clearance | 310mm | |
25 | Driving mode | Four-wheel full hydraulic drive | |
Tire | 26 | Tire type | 16/70-20 |
27 | Optional tire | 16/70-24 | |
Brake | 28 | Brake mode | Air assist disc brake on 4 wheels |
Packaging | 29 | Packaging details | Nude package,1 unit in 20GP,2 units in 40HQ. |
30 | Port | Qingdao | |
Delivery time | 31 | 15-25 days after 30% down payment. | |
Warranty | 32 | 15 months after delivery. | |
David Li Mobile: 86 13258070039
E-mail: heracles@swgm.cc
Skype: cnheracles
- Size: 5890*2000*2850mm
- Place of Origin: Shandong Qingzhou
- Brand Name: SWGM/HERACLES
- Model Number: HR926F
- Weight: 5500.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
The technical parameters of HR926F series CE certificate wheel loader | |||
Performance | 1 | Rated loading | 2600kg |
2 | Overall weight | 5500kg | |
3 | Rated bucket capacity | 1.3m³ | |
4 | Maximum tractive force | ≥54KN | |
5 | Maximum breakout force | ≥45.4KN | |
6 | Maximum grade ability | 30° | |
7 | Maximum dump height | 3100 | |
8 | Maximum dump reach | 752mm | |
9 | Overall dimension (L×W×H) | 5890×2000×2850mm | |
10 | Minimum turning radius | 5330mm | |
Engine | 11 | Standard Engine Model | Yunnei turbocharged engine |
12 | Optional model | Weichai/Cummins engine | |
13 | Type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
14 | Rated power | 76KW | |
15 | Rated speed | 2200rpm-2400rpm | |
16 | Engine starting mode | Electric | |
Transmission system | 17 | Gearbox mode | Counter shaft power-shift |
18 | Gear shift | 2 forward shift 2 reverse shift | |
19 | Maximum speed | 25km/h | |
Drive axles | 20 | Main reducing spiral | Circular Arc Bevel gear, single stage |
21 | Decelerating mode | Single stage planetary type | |
22 | Wheel base (mm) | 2400mm | |
23 | Wheel tread | 1640mm | |
24 | Ground clearance | 310mm | |
25 | Driving mode | Four-wheel full hydraulic drive | |
Tire | 26 | Tire type | 16/70-20 |
27 | Optional tire | 16/70-24 | |
Brake | 28 | Brake mode | Air assist disc brake on 4 wheels |
Packaging | 29 | Packaging details | Nude package,1 unit in 20GP,2 units in 40HQ. |
30 | Port | Qingdao | |
Delivery time | 31 | 15-25 days after 30% down payment. | |
Warranty | 32 | 15 months after delivery. | |
