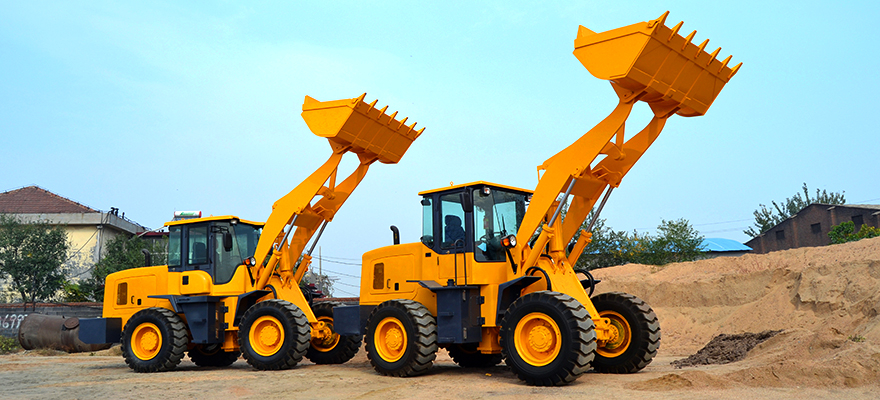

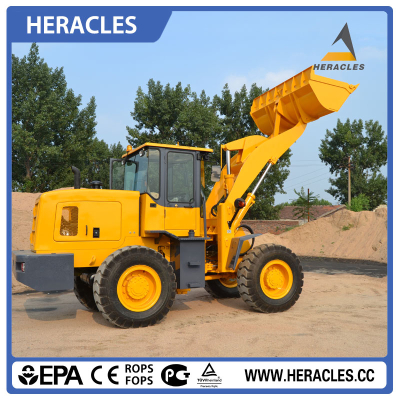

- Size: 6954* 2250 * 3190(mm)
- Place of Origin: Qingzhou
- Brand Name: SWGM/HERACLES
- Model Number: HR936F
- Weight: 9800.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
MAIN TECHNICAL SPECIFICATIONS:
一、 Overall Dimension | |||||||||||
1 | Length(with bucket on ground) | 6954(mm) | |||||||||
2 | Width(to outside of wheels) | 2250(mm) | |||||||||
3 | Bucket width | 2440(mm) | |||||||||
4 | Height(To the top of the cab) | 3190(mm) | |||||||||
5 | Wheel base | 2750(mm) | |||||||||
6 | Track | 1800(mm) | |||||||||
7 | Min. ground clearance | 370(mm) | |||||||||
二、 Main Performance Specification | |||||||||||
1 | Rated load | 3000(Kg) | |||||||||
2 | Operating weight | 9800(Kg) | |||||||||
3 | Rated bucket capacity | 1.8(m³) | |||||||||
4 | Max. breakout force | ||||||||||
MF of bucket’s rolling back | 120.6(KN) | ||||||||||
MF of bucket’s lifting | 55.5(KN) | ||||||||||
5 | Max. draw / pull | 75(KN) | |||||||||
6 | Max. dump clearance | 2750(mm) | |||||||||
7 | Dump reach | 1084(mm) | |||||||||
8 | Dump angle at any position | ≥450 | |||||||||
10 | Max. turning radius | ||||||||||
Outside of bucket | 5700(mm) | ||||||||||
Outside of rear wheel | 5200(mm) | ||||||||||
11 | Pivot angle frame | 36 10 | |||||||||
12 | Oscillating angle of rear axle | 120 | |||||||||
13 | Lifting time of bucket | <6.0(sec.) | |||||||||
14 | Lowering time of bucket | <3.5(sec.) | |||||||||
15 | Dumping time | <1.5(sec.) | |||||||||
16 | Travelling speed(Km/h) | ||||||||||
(1)1st gear | 8 | ||||||||||
(2)2nd gear | 14 | ||||||||||
(3)3rd gear | 25 | ||||||||||
(4)4th gear | 41 | ||||||||||
三、Diesel engine | |||||||||||
1 | Model | Weichai DEUTZ Engine | |||||||||
2 | Optional | Xichai or Cummins or EURO3 Engine | |||||||||
3 | Type | Four Stroke,director iniector,water cooling | |||||||||
4 | Rated output | 92Kw | |||||||||
5 | Voltage of starting motor | 24v | |||||||||
6 | Rated speed | 2400r/min | |||||||||
7 | Max. torque | 432N.m | |||||||||
8 | Starting type | Electric starting | |||||||||
四、Transmission System | |||||||||||
(一)、Torque Converter | |||||||||||
1 | Model | YJ320 | |||||||||
2 | Type | 3-element.single stage | |||||||||
3 | Torque ratio | 3.7 | |||||||||
4 | Dia. of flow path | 320(mm) | |||||||||
5 | Max. efficiency | ≥85.7% | |||||||||
6 | Cooling type | Pressure oil circulating | |||||||||
(二)、Transmission case | |||||||||||
1 | Type | Fixed shaft. power shift | |||||||||
2 | Gear shift position | 4 Forward and 4 reverse gears | |||||||||
3 | Model of gear shift pump | CB32 | |||||||||
4 | Displacement of gear shift pump | 32(ml/r) | |||||||||
(三)、Axle and Tyre | |||||||||||
1 | Type of main reducer | Single stage | |||||||||
2 | Gear ratio of main reducer | 7.63:1 | |||||||||
3 | Type of final reducer | Single stage planetary | |||||||||
4 | Gear of ratio of final reducer | 3.6:1 | |||||||||
5 | gear ratio | 27.468 | |||||||||
5 | Size of tyre | 17.5-25 | |||||||||
五、Working Device Hydraulic System | |||||||||||
1 | Model of oil pump | CBG2100 | |||||||||
2 | Displacement of the pump | 100(ml/r) | |||||||||
3 | System pressure | 15690(Kpa) | |||||||||
4 | Model of distribution valve | DF25.2 | |||||||||
5 | (D*L)Dimension of lifting cylinder | Ф110*63*780(mm) | |||||||||
6 | (D*L)Dimension of tilting cylinder | Ф160*90*499(mm) | |||||||||
六、Steering System | |||||||||||
1 | Type | Middle articulated frame. full hydraulic power | |||||||||
2 | Model of steering gear | BZZ1-400 | |||||||||
3 | Model of steering pump | CBN-E550 | |||||||||
4 | Displacement of pump | 50(ml/r) | |||||||||
5 | System pressure | 9806kPa | |||||||||
6 | Dimension of steering cylinder | Ф80*294(mm) | |||||||||
七、Brake System | |||||||||||
1 | Type of travelling brake | Disc brake | |||||||||
2 | Type of emergency brake | Automatic cutting air brake | |||||||||
3 | Type of parking brake | Disc brake | |||||||||
八、Oil rifill Capacity | |||||||||||
1 | Fuel(diesel) | 142(L) | |||||||||
2 | Engine lubricating oil | 18(L) | |||||||||
3 | Oil for converter and gear box | 32(L) | |||||||||
4 | Oil for hydraulic system | 140(L) | |||||||||
5 | Oil for driving axles | 25(L) | |||||||||
