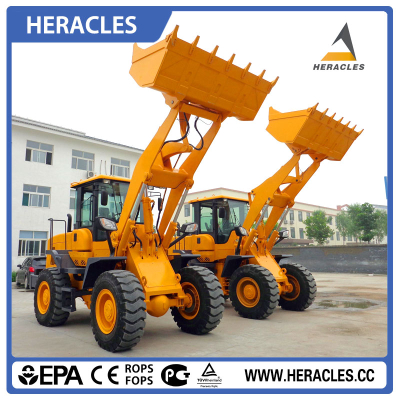

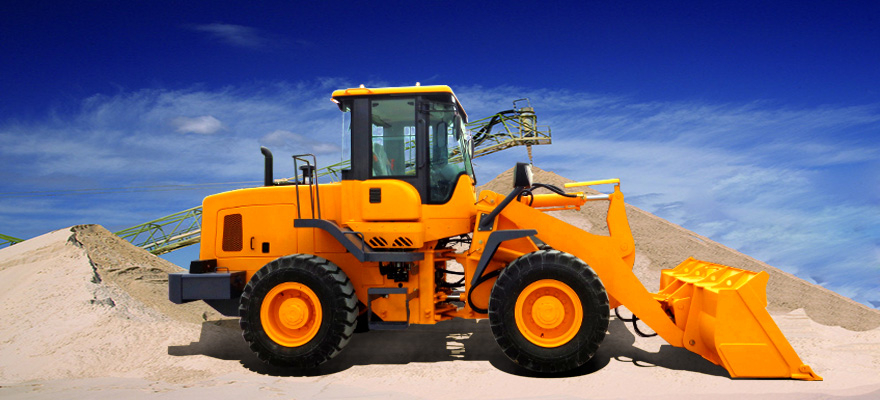

HR938F Heracles wheel loader for sale with price spare parts

HR938F Heracles wheel loader for sale with price spare parts

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Qingdao port
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-11-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  7700*2510*3200mm
  • Place of Origin:  Qingzhou
  • Brand Name:  SWGM/HERACLES
  • Model Number:  HR938F
  • Weight: 9600.000 kg

TECHNICAL AND PERFORMANCE HR938F WHEEL LOADER


Basic Parameter

Overall weight(kg)

9600

L×W×H(mm)

7700x2510x3200

rated bucket capacity(m3)

1.8

Rated load(kg)

3500

Maximum dump height(mm)

3300-3500

Performance of bucket being set level

Yes

Min. turning radius(mm)

5862

Engine

Parameter

Model

DEUTZ Engine

Optional model

Cummins Engine

Type

In-line arrangement,direct injection, Water cooling,4-stroke,6-cylinder

Rated power(kw)

92

Rated speed(r/min)

2400

Transmission

System

Model of torque converter

ADVANCE BS428B

Type

Single phase ,four-element,double turbo

Gearbox type

Axial full power shift transmission

Gear shift

4 gears forward,2 gear reverse

Max.speed

42km\h

Hydraulic

System

Boom lifting time

5.3s

Total time

9.2s

System working pressure

16MPa

Steering System

Type

Articulated hydraulic steering

Steering angle

38°each side

Min turning radius(mm)

4500

Brake system

Service brake

Air over hydraulic disc brake


Parking brake

Air over hydraulic disc brake on four wheels

Tires

Standard tire

17.5-25

Optional tire

20.5-25

Capacity

Fuel

140L

Hydraulic

128L
