- Size: 7955*3068*3406mm
- Place of Origin: Qingzhou
- Brand Name: SWGM/HERACLES
- Model Number: HR958F
- Weight: 16000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :

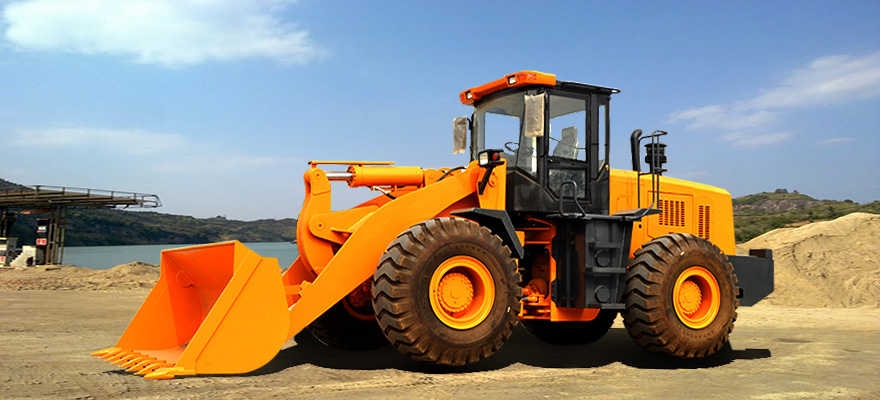

HR958F,a long-wheelbase loader for loading bulk materials and hard materials,features large breakout force and tipping load enjoyed by long-wheelbase loader as well as the flexibility and small turning angle enjoyed by short-wheelbase loader,and is widely applied in areas like sand plants,ports,construction sites,mines etc. 1.The loader is equipped with the low-speed and high-torque China II Weichai engine featuring low fuel consumption,strong power and high reliability,for which a horizontally-mounted two-stage air filter of high reliability is installed. 2.The cooling system is applied with the electrically-controlled thermal energy management module and has its radiator structure and intake/exhaust duct optimized,effectively reducing the engine water temperature and the oil temperature of the hydraulic system,and enhancing the cooling efficiency of the complete loader. 3.The loader is applied with the technologically sophisticated HERACLES planetary transmission with two forward gears and one reverse gear, enabling easy operation,good reliability and high efficiency,the drive axle is reinforced to provide large loading capacity and high reliability. 4.The new steel cab applied offers for drivers a wide vision and a greater operating space,in which the full-coverage interior is reliability. 5.The digitalized stepping instrument panel independently developed by HERACLES is applied,offering an effective human-machine interaction. The loader is equipped with the load-sensing mechanically-controlled hydraulic steering system, allowing easy control,and reliable performance.The hydraulic pipelines are of dual-sealing structure,further enhancing the tightness of hydraulic system. 6.The loader is applied with the reinforced rear/front frames which have gone through 200,000 cycles of fatigue intensifying tests,and the load of complete loader is reasonably distributed,both of which contribute to a high loading capacity and a good stability. 7.The optimal design is conducted for the implement,which ensures large breakout force and high full-load coefficient,the main-cutting board of the bucket is of ht trapezoidal water-resisting steel structure,and the bottom water-resisting plate is of thickened structure,which ensures small shoveling resistance and good water-resisting property. | |
Item | Specifications |
Overall working weight | 16000kg |
Rated bucket capacity | 2.7m³ |
Rated load | 5.0t |
Max. tractive force | 161kN |
Max. breakout force | 177kN |
Max. grade ability | 28° |
Max. dumping height | 3142 mm |
Dumping distance | 1214mm |
Overall dimension(L*W*H) | 7955×3068×3406mm |
Engine | |
Model | WEICHAI STEYR D10.21AT21 |
Type | Inline ,water cooling, dry cylinder, direct injection |
Number of cylinder-bore\stroke | 6-¢126*130mm |
Max. torque | 920N.M |
Rated power | 154kw |
Rated speed | 2100rpm |
Total displacement | 9730cc |
Transmission system | |
Torque converter model | YJ375 |
Torque converter | Single-stage, three-element |
Transmission type | Planetary power shift |
Gear shift | 4 forward shift,4 reverse shift |
Item | Specifications |
Max. speed | 41.3km\h |
Front and rear axles | |
Main transmission type | Spiral gear, first stage decelerate |
Final decelerate type | First stage, planetary gear decelerate |
Tyre | |
Type specification | 23.5-25 |
Front tyre pressure | 400Kpa |
Rear tyre pressure | 350Kpa |
Steering system | |
Type | Middle Articulated frame with full –hydraulic power steering |
Steering angle | 38°each side |
Turning Radius(max) | Center of the outside tire:5772mm |
Hydraulic system | |
System working pressure | 17MPa |
Boom lifting time | ≦5.62s |
Total time | ≦10.81s |
Brake system | |
Service brake | Dry disc brake(Air over oil activate 4 wheel brake with caliper disc brake) |
Parking brake | Manual caliper disc |
Capacity | |
Fuel | 270L |
Hydraulic | 235L |
David Li Mobile: 86 13258070039
E-mail: heracles@swgm.cc
Skype: cnheracles
