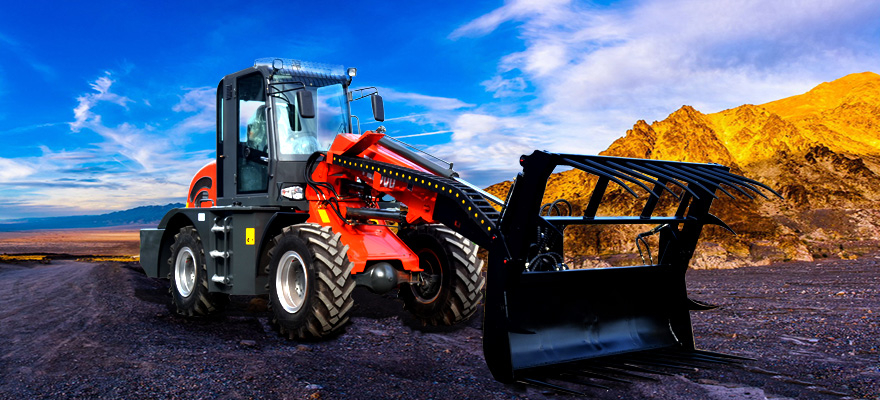

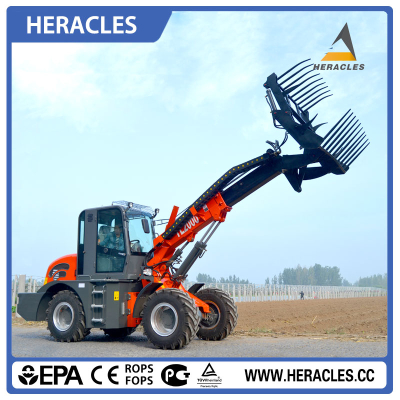

TL2000 TELESCOPIC WHEEL LOADER

1.0 Engine Details

(1) Model: YUNNEI Turbocharged Engine

(2) Engine Type:In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power: 65KW

(4) Rated Speed: 2400 r/p.min (rpm)

(5)Optional Engine:YUNNEI engine(55KW/60KW),YUCHAI engine(58KW/62KW),

  WEICHAI engine(53KW/56KW/65KW),CUMMINS engine(60KW or 74KW)

2.0 Transmission System

Hydraulic converter gearbox drive shaft hub reduction axles

3.0 Bucket

(1) Bucket Capacity: 1m³

(2) Bucket width: 1900mm

(3) Bucket type:Heavy-duty bolt on teeth

(5) Rated Load: 2000kg including attachment or bucket

4.0 Overall Dimensions

(1) Overall Length: 6600mm

(2) Overall Height:2750mm

(3) Overall Width: 2050mm

(4) Max. lifting Height:5000mm

(5) Lifting to bucket hinge pin Height:4500mm

(6) Bucket Unloading Height:3950mm

(7) Unloading Distance:  1950mm(Arm extended)

                 1150mm(Arms recovered)

5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering

(2) Min Turning Radius: 4600mm(The right front wheel)

   Min Turning Radius: 2300mm(The left rear wheel)

(3) Driving System: Hydraulic converter, four wheel drive

(4) Hydraulic joystick control.

6.0 Brake System

(1) Service Brake:Safer air assist disc brake braking system

(2) Parking Brake:Hand operated（Disc brakes）

7.0 Tire

(1) Model:16/70-20  (2)Width: 380mm(3) Diameter: 1075mm

(2) Optional Model:16/70-20 Herringbone tire

8.0 Wheelbase: 2500mm

9.0 Track: 1600mm

10. System pressure: 20Mpa; Hydraulic output:96L/min

11. Machine weight: 6600KG
