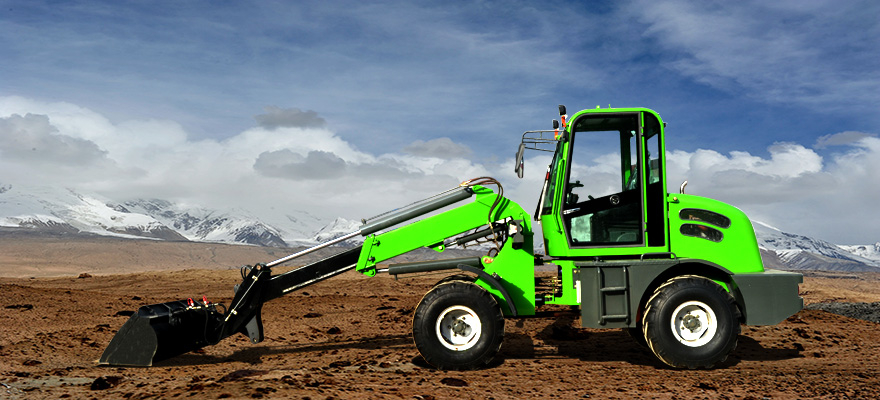

TL1500 telescopic boom loader

Features:

1.The telescopic boom which can reach 4.2m greatly increase it’s working scope.

2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.

3.The seals, valve & joystick handle are famous oversea products which guarantee that it’s a reliable long lasting machine.

4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.

5.Wide view cabin and two entrance makes the operating convenient and safe.

6.Quick coupling system, mechanic joystick and buttons makes the operating easy and convenient.

7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance much more simple.

Main technical specification:

1.0 Engine Details

(1) Model: Chinese Yunnei engine

(2) Engine type:In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power:42KW

(4) Rated Speed:2400 r/p.min (rpm)

(5) Fuel Consumption ratio in standard working condition: 230g/kw.h

(6)Optional Model: XINCHAI Euro3/EPA engine or WEICHAI engine or YANMAR EPA3/EPA4 engine or CUMMINS EPA4 engine

2.0 Transmission System

Hydraulic converter drive shaft Isuzu axles(Disc brake)

3.0 Bucket

(1) Bucket Capacity: 0.65 m³

(2) Bucket width: 1600mm

(3) Bucket type:Heavy-duty bolt on teeth

(5) Rated Load:1500kg including attachment

4.0 Overall Dimensions

(1) Overall Length: 5900mm

(2) Overall Height: 2710mm

(3) Overall Width: 1800mm

(4) Max. lifting Height: 4700mm

(5)Max. Bucket hinge pin Height: 4200mm

(6)Max. Unloading Height: 3700mm

(7)Max. Turning Radius: 5500mm(Outer of bucket)

(8)Min. Turning Radius: 4700mm(Outer of front tire)

(9)Min. Turning Radius: 4500mm(Outer of rear tire)

5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering

(2) Driving System: Hydraulic converter, four wheel drive

(3) Optional quick release(VOLVO style)

(4) Mechanical pilot joystick

(5) Steady rise.

6.0 Brake System

(1) Service Brake:Four wheel disc brake

(2) Parking Brake:Hand operated

7.0 Tyre

(1) Model:23.5/70-16 (2)Width: 330mm(3) Diameter: 920mm

(2) Optional Model:12-16.5 or 31*15.5-15 wider tubeless tire

8.0 Wheelbase: 2355mm

9.0 Track: 1415mm

10. System pressure:16Mpa; Hydraulic output:70L/min

11.Net weight:4200KG
