- Size: 7800*1900*2960mm
- Place of Origin: Shandong Qingzhou
- Brand Name: SWGM/HERACLES
- Model Number: WZ15-10
- Weight: 4180.000 kg
- :
- :
- :
- :
- :
- :
- :
- :

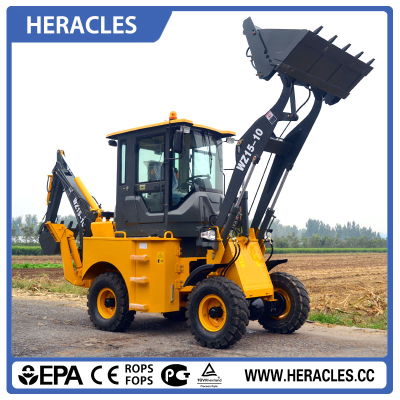

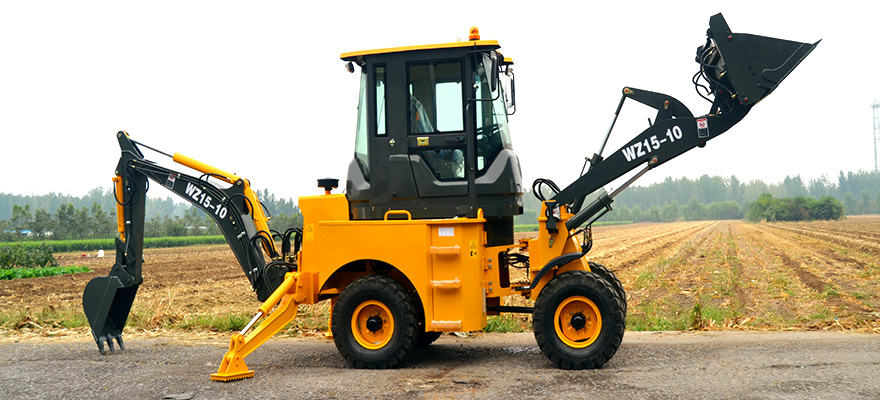

WZ15-10 Backhoe wheel loader
●Enlarged operator cabin, with secure glass, is capacious and bright some.
●Working table, water temperature, oil temperature, current, work timing are all in sight.
●Famous brand hydraulic components are adopted, two gear oil pump work together, the power is driving and loading and dumping can change freely.
●Adjustable seat, convenient and comfortable to use.
●Rear and front body, with smell rotary radius, hydraulic steering, comfy and convenient to operate.
●Hydraulic traction, the moving arm can leveled skid and expend digging range.
●Completely have the all functions of mini type digging machines.
●Ascendant performance of complete appliance, with extraordinary operation efficiency.
●With which many kinds of optional components can be matched to meet requirements of different users.
WZ15-10 | Overall Dimension: | 7800x1900x2960mm |
Rated load: | 1000kgs | |
Operate weight: | 4180kgs | |
Bucket width: | 1700mm | |
Bucket capacity: | 0.7m³ | |
Dig bucket capacity | 0.15m³ | |
Max. dumping height | 2350mm or 2700mm or customized | |
Max. digging depth | 2000mm or 2500mm or customized | |
Dumping distance | 1050mm | |
Engine | Model: | YUNNEI engine |
Rated power | 37KW | |
Pattern: | In-line, water-cooling, 4 stroke, direct inject | |
Optional model: | XINCHAI/YANMAR/PERKINS/ CUMMINS engine | |
Storage Battery | 80 A free-maintenance | |
Transmission System | Gearbox model: | Mechanical or hydraulic |
Axle: | Isuzu drive axle(drum brake) | |
Drive model: | Four wheel drive | |
Steering System | Steering angle | ±35° |
Min. Turning Radius: | 4500mm | |
Pattern: | Articulated type full-hydraulic power steering | |
Service brake | Drum brake(Expanding shoe brakes) | |
Parking brake: | Hand operate,disc brake | |
Tyre | Model: | 14/90-16 |
Optional model | 12-16.5 or 14-17.5 wider tire 31*15.5-15 wider tire |
David Li Mobile: 86 13258070039
E-mail: heracles@swgm.cc
Skype: cnheracles
- Size: 7800*1900*2960mm
- Place of Origin: Shandong Qingzhou
- Brand Name: SWGM/HERACLES
- Model Number: WZ15-10
- Weight: 4180.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
WZ15-10 | Overall Dimension: | 7800x1900x2960mm |
Rated load: | 1000kgs | |
Operate weight: | 4180kgs | |
Bucket width: | 1700mm | |
Bucket capacity: | 0.5m³ | |
Dig bucket capacity | 0.15m³ | |
Max. dumping height | 2350mm or 2700mm or customized | |
Max. digging depth | 2000mm or 2500mm or customized | |
Dumping distance | 1050mm | |
Engine | Model: | YUNNEI engine |
Rated power | 37KW | |
Pattern: | In-line, water-cooling, 4 stroke, direct inject | |
Optional model: | XINCHAI/YANMAR/PERKINS/ CUMMINS engine | |
Storage Battery | 80 A free-maintenance | |
Transmission System | Gearbox model: | Mechanical or hydraulic |
Axle: | Isuzu drive axle(drum brake) | |
Drive model: | Four wheel drive | |
Steering System | Steering angle | ±35° |
Min. Turning Radius: | 4500mm | |
Pattern: | Articulated type full-hydraulic power steering | |
Service brake | Drum brake(Expanding shoe brakes) | |
Parking brake: | Hand operate,disc brake | |
Tyre | Model: | 14/90-16 |
Optional model | 12-16.5 or 14-17.5 wider tire 31*15.5-15 wider tire |
