- Size: 8000 x 2,100 x 3,100MM
- Place of Origin: Qingzhou
- Brand Name: SWGM/HERACLES
- Model Number: WZ30-25
- Weight: 6300.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :

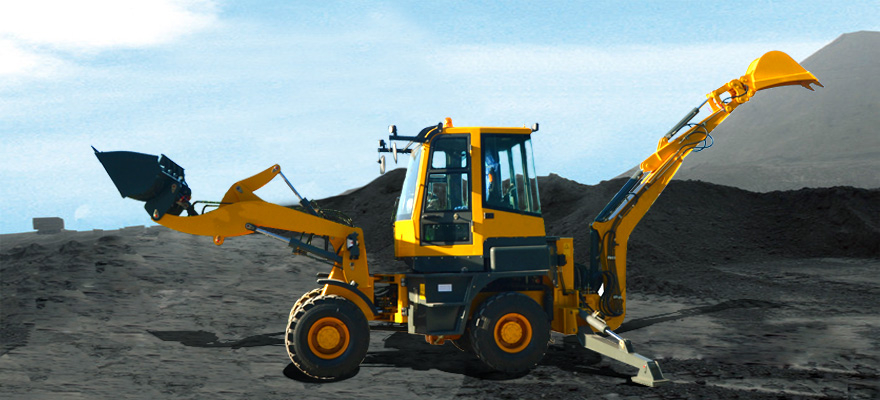

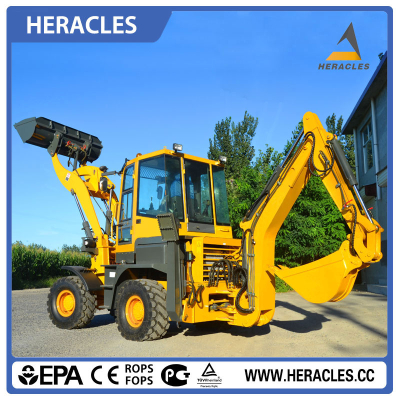

WZ30-25 WHEEL BACKHOE LOADER
1. Enlarged operator cabin, with secure glass, is capacious and brightsome.
2. Working table:water temperature, oil temperature, current, are all in sight.
3. Adopt Cummins engine and the power is stronger.
4. Famous brand hydraulic components and imported main pump are adopted.
The operating life is long and the operating speed is fast.
5. Adjustable seat, convenient and comfortable to use.
6. Hydraulic steering, comfy and convenient to operate.
7. Hydraulic traction, configured with advanced gear oil pump and infinitive stage transmission
inland.
8. Completely have the all functions of mini type digging machines.
9. Ascendant performance of complete appliance, with extraordinary operation efficiency.
10. With which many kinds of optional components can be matched to meet requirements of
different users.
Performance | Length x Width x Height: 8000 x 2,100 x 3,100MM |
Cab Roof Height: 2,900MM | |
Wheel Base: 2,250MM | |
Track: 1,640MM | |
Min. Ground Clearance: 300MM | |
Total Weight: 6300KG | |
Maximum Speed: 22Km/h | |
Maximum Grade ability Capacity: 30° | |
Loading Bucket Capacity: 1.5CBM | |
Loading Capacity: 2,500KG | |
Bucket Discharge Height: 3500 MM | |
Bucket Discharge Distance: 1,062MM | |
Backhoe Bucket Capacity: 0.3CBM | |
Backhoe Discharge Height: 3,500MM | |
Maximum Digging Depth: 4,100MM | |
Bucket Slewing Angle: 180° | |
Bucket Stick Revolving Radian: 180° | |
Diesel Engine | Model: Cummins |
Engine Power:55KW or 60kw | |
Type: Inline, direct injection, four-stroke, liquid cooled | |
Rated Speed: 2,200RPM | |
Transmission System | Type of Hydraulic Pump: Fixed shaft power shift transmission |
Gear Shift: 2 forward shift 2 reverse shift | |
Torque: YJ-280 | |
Drive Pump: CDXaf3016-IL | |
Flow: 16ML/R | |
Work Pump: CBGj2063 | |
Flow: 63ML/R | |
Steering System | Type: Articulated hydraulic steering |
Steering Control Valve: BZZ5-250 | |
Turning Control Valve: YSF25S-00 | |
Steering Angle: 36° | |
Minimum Turning Radius: 5,018MM | |
Axles | Main Transmission Type: Single Reduction |
Wheel Reduction Type: Wheel Reduction | |
Tyre | Tyre Size: 16/70-20 ( optional 16/70-24) |
Front Wheel Pressure: 0.22MPa | |
Rear Wheel Pressure: 0.20MPa | |
Brake System | Service Braking: Air over hydraulic disc on 4 wheels |
Parking Brake: Manual parking brake | |
Hydraulic System | System Flow: 140L/Min |
Bucket Digging Capacity: 46KN | |
Bucket Stick Digging Capacity: 31KN | |
Bucket Hydraulic Translation Function: Yes | |
Bucket Lift Time: 6.8S | |
Bucket Lower Time: 2.5S | |
Bucket Dump Time: 1.2S |
Contact me:
David Li Mobile: 86 13258070039
E-mail: heracles@swgm.cc
Skype: cnheracles
